Product Big image
€79.40

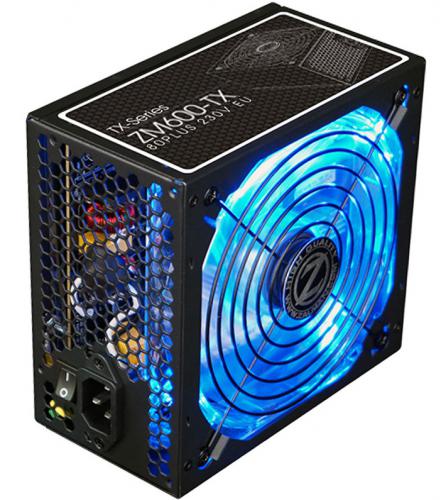

ΤΡΟΦΟΔΟΤΙΚΟ ZALMAN ZM600-TX 600W

  • Κωδικός Προϊόντος:0163945
  • Κατασκευαστής:
  • Διαθεσιμότητα:Παράδοση 1 έως 3 ημέρες

ZALMAN τροφοδοτικό ZM600-TX, 600W, 80Plus Active PFC, LED.



ZALMAN τροφοδοτικό ZM600-TX, 600W, 80Plus Active PFC, LED.

-Built-in Active PFC circuit to provide high power factor and high efficiency
-Dual Forward Converter Circuit designed for stability
-Single+12VDC output design for stabilized voltage supply
-Built-in Over-voltage, Under-voltage, Short-circuit Protection Functions
-Circuit design with DC-DC Converter for +5V and +3.3V
-Low noise 140mm Quiet Blue LED Fan controlled by thermal Cooling System

Τεχνικά Χαρακτηριστικά:
- AC Input Range:
- Voltage: 200 ~ 240VAC ± 10%
- Frequency: 50 ~ 60Hz ± 3
- AC Input Current(Rated)
- Voltage: 200~ 240VAC
- Current:8A
- PFC Type: Active PFC
- Power Factor: Max 98%
- Inrush Current Limit(@ Cold start at 25°C): 115VAC-230VAC Max 100A
- Efficiency: Max 86% @ 230VAC, Typical load
- DC Output Voltage Regulations
- Vout Regulation Range
- +3.3VDC ±5% +3.14 ~ +3.47V
- +5VDC ±5% +4.75 ~ +5.25V
- +12VDC ±5% +11.4 ~ +12.6V
- -12VDC ±10% -10.8 ~ -13.0V
- +5VSB ±5% +4.75 ~ +5.25V
- DC Output Ripple & Noise
- Vout Standard Range
- +3.3VDC 50mV
- +5VDC 50mV
- +12VDC 120mV
- -12VDC 120mV
- +5VSB 50mV

Temperature:
Operation temperature: 0 ~ 40°C
Storage temperature: -20 ~ 70°C
Protection Features: Under Voltage(UVP), Short Circuit(SCP), Over Power(OPP), Over Current (OCP), Over Voltage(OVP)
Dimensions: 157(L) x 150(W) x 86(H) mm
Weight: 2.1kg
Εγγύηση 2 έτη
