€42.30

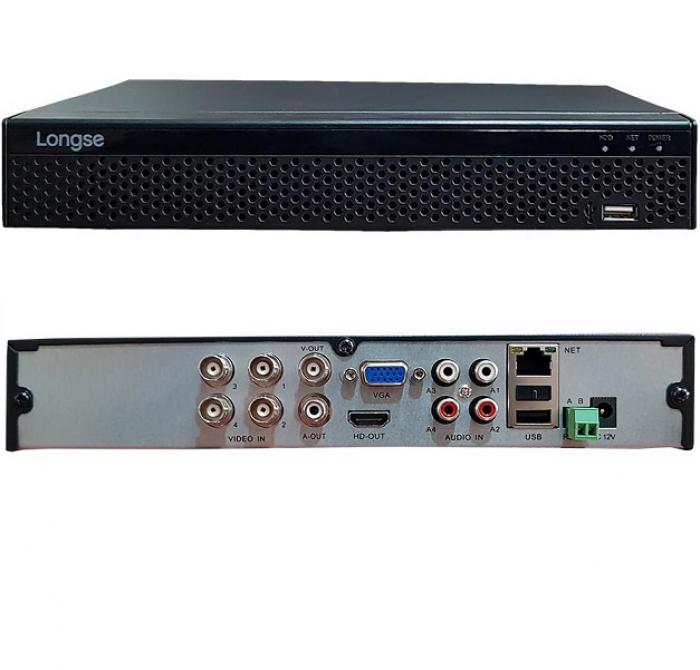

DVR LONGSE XVRDA2004HD

  • Κωδικός Προϊόντος:0150446
  • Κατασκευαστής:Longse
  • Διαθεσιμότητα:Παράδοση 1 έως 3 ημέρες

Το υβριδικό δικτυακό καταγραφικό XVRDA2004HD από την Longse αποτελεί μία από τις πλέον αξιόπιστες λύσεις σε καταγραφικά.



Το υβριδικό δικτυακό καταγραφικό XVRDA2004HD από την Longse αποτελεί μία από τις πλέον αξιόπιστες λύσεις σε καταγραφικά.

Τεχνικά Χαρακτηριστικά:
Main Processor: HI3520DV400
Operating System: Embedded LINUX
Input "Normal Mode: Analog: 4x(TVI/AHD:8M; TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P;  Analog: 960H) Analog+Network: 2xAnalog(1080P)+7xnetwork(MAX 5MP)
Lite Mode: Analog: 4x(AHD/TVI/CVI: 1080P/720P; Analog: 960H) Analog+Network: 2xAnalog(1080P)+7xnetwork(MAX 5MP)
Network: 12x5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ?48M)
Input: 4CH BNC
Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Output: 1HD,1 VGA
Input/Output: 4 Channel, RCA/1 Channel, RCA
Motion Detection: 4 Channel(max 16 Channel in pure network mode)
Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications(motion detection)
Email Alarm: Send Image to The Designated E-mail
Interface: RS485
Protocol: Pelco-D, Pelco-P
Baud Rate: 110~921600
Address: 0~255
VGA Resolution: 1920,1080P/60Hz, 1280,1024/60Hz, 1280,720/60Hz,1024,768/60Hz
HD Output: Normal Mode: Resolution:2560x1440/30Hz, 1920x1080P/60Hz, 1280x1024/60Hz, 1280x720/60Hz,1024x768/60Hz
Lite Mode: Resolution: 3840?2160/30Hz, 2560x1440/30Hz, 1920?1080P/60Hz, 1280?1024/60Hz, 1280?720/60Hz, 1024?768/60Hz
Display Split: 16 Channel/9 Channel/4 Channel / 1Channel
Privacy Masking: 3 Rectangular Zones (Each camera)
OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording
Video Compression: H.265/H.265+/H.264/H.264+
Audio Compression: G.711u
Resolution: 5MP(2592?1944),8MP_LITE(1920?2160),5MP_HALF(1296?1944),4MP(2560?1440),4MP_HALF(1280?1440),3MP(2048?1536),1080P(1920?1080),720P(1280?720),960H(P:960?576/N:960?480)
Video Quality: worst/worse/ordinary/well/best
Record Rate: Normal Mode: Analog: PAL:8MP_LITE(1920?2160 4x8fps), 5MP(2592?1944 4x6fps), 5MP_HALF(1296?1944 4x10fps),4MP(2560?1440 4x8fps),4MP_HALF(1280?1440 4x15fps),3MP(2048?1536 4x9fps),1080P(1920x1080 4x15fps),720P(1280?720 4x25fps), 960H(960?576 4x25fps) NTSC:8MP_LITE(1920?2160 4x8fps), 5MP(2592?1944 4x6fps),5MP_HALF(1296?1944 4x10fps),4MP(2560?1440 4x8fps),4MP_HALF(1280?1440 4x15fps),3MP(2048?15364x9fps),1080P(1920x1080 4x15fps),720P(1280?720 4x25fps), 960H(960?480 4x25fps)
Lite Mode: Analog: Half 1080P(960x1080 4x25fps),720P(1280?720 4x25fps), 960H(P:960?576 4x25fps/N:960?480 4x30fps)
Pure IP(H.265): PAL: 5MP 8?25fps,4MP 12x25fps,3MP 12?25fps,1080P 12?25fps,960P 12?25fps,720P 12?25fps,D1 12?25fps
NTSC: 5MP 8?30fps,4MP 12?30fps,3MP 12?30fps,1080P 12?30fps, 960P 12?30fps, 720P 12?30fps, D1 12?30fps
Record Mode: Manual\Timer\Motion Detection
Decode Capability 2CH 1080P 30fps
Sync Playback: Pure Analog: 4CH 5M 6fps, 4CH 4M 7fps, 4CH 3M 9fps, 4CH 1080p 15fps, 4CH 1080N 25fps
Mix Mode: 1CH 5M 30fps, 1CH 4M 30fps, 1CH 3M 30fps, 2CH 1080P 30fps, 3CH 1080p 15fps
Pure IPC: 1CH 5MP 30fps, 1CH 4MP 30fps, 1CH 3M 30fps, 4CH 1080P 30fps, 4CH 960P 30fps, 4CH 720P 30fps
Remote Playback: 4 Channel/1Channel
Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions: Play, Pause, Stop, Fast play, Rewind, Digital Zoom, Full screen
Smart Phone Playback: 4 Channel
Backup Mode: USB Device(with fomat FAT 32 )/Network
Interface 1 RJ45 10M/100M Adaptive Ethernet Interface
Network Functions TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP
DDNS Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE
Web Browser IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
CMS Software: Support  Windows 7/ Windows 8/Windows 10
Extra Stream: CIF(1~25fps)
Smart Phone: iPhone, ipad,  Android ,Android pad
Interface Type: 1 SATA Interface
Capacity: 1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)
Language: Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek
UTC Control: Yes
USB Interface: 2 USB 2.0 Interfaces
Power consumption: DC 12V  ?6W (Without Hard Disk)
Working Environment: -10~55C/10~90%
Εγγύηση 2 έτη
